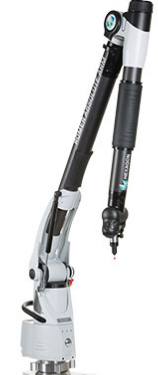

Portable Arm Inspection
Technical Specification :
Measuring Range 2.5m
Volumetric Accuracy 0.029mm
Single Point Accuracy 0.020mm
Working Temperature 0˚ to 50˚C
Storage Temperature -30˚ to 70˚C
Relative Humidity 10% to 90%
Machine Traceability B89.4.22 Certified

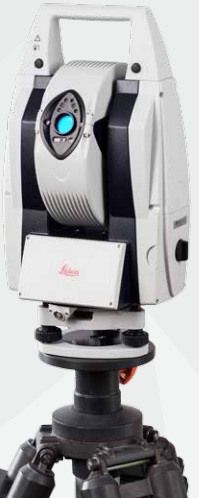

Laser Tracker Inspection
Technical Specification :
Typical Reflector Measurement Volume (Θ) 320 m
Operating Temperature 0° to +40°C
Relative Humidity Max 95% (non-condensing)
Altitude -700 to 5500 m
Angular Accuracy +/- 15µm +6µm/m
Angular Repeatability +/- 7.5µm +3µm/m
Distance Accuracy +/- 10µm
Distance Repeatability +/- 5µm
B-Probe Accuracy +/- 0.2mm(+/- 0.008")
Machine Traceability B89.4.19-2006 Certified

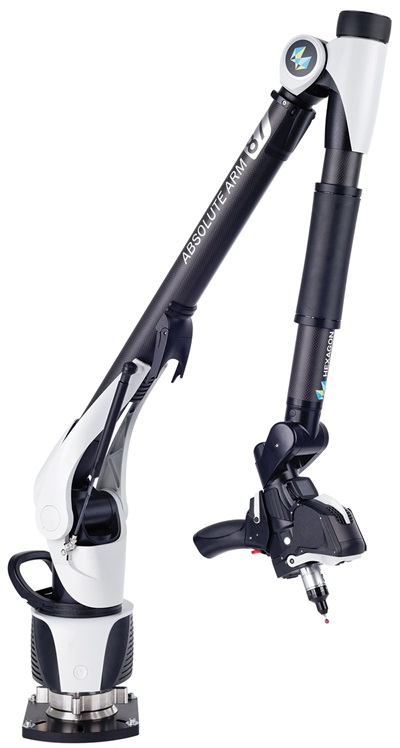

Portable Scanning Arm Inspection
Technical Specification :
Measuring Range 2.5m
Volumetric Accuracy Euni 0.048mm
Single Point Accuracy Psize 0.023mm
Scanner Accuracy SSA 0.065mm
Working Temperature -5˚ to 40˚C
Storage Temperature -30˚ to 70˚C
Relative Humidity 10% to 90%
Machine Traceability ISO10306_8 Certified
